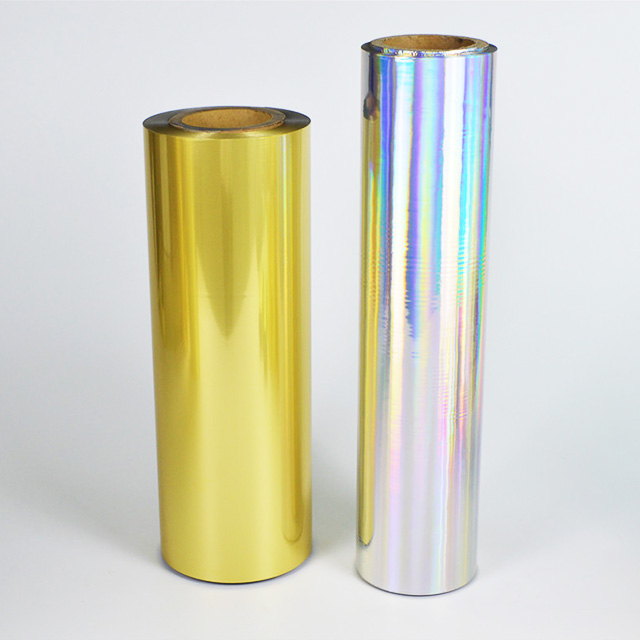

Mismatched cores often create hidden costs on the production floor. Operators struggle daily against web tension inconsistencies. Telescoping rolls and unnecessary press downtime severely harm operational efficiency. We see these errors frequently in modern converting environments.
High-quality printing relies heavily on mechanical stability right at the unwind station. A poorly specified core size leads directly to foil flaking. It causes registration drift and wastes expensive substrate before printing even begins. Fixing this requires technical precision.
We will explore how to perfectly match core dimensions to your specific setup. You will learn a technical framework to evaluate unwinders properly. We will help you specify the right components without relying on high-risk mechanical workarounds. Establishing this mechanical baseline ensures smoother production runs. It eliminates the daily frustrations your press operators face. Standardizing your approach today prevents costly downtime tomorrow.
A loose fit creates immediate micro-variations across the web. When operators force a mismatched core onto a spindle, tension fluctuates constantly. The core slides during rapid acceleration. Tension drops cause the foil to flake prematurely. Furthermore, unstable webs lead directly to registration drift. You cannot achieve tight tolerances when the substrate dances across the rollers. Matching your cold foil core diameter exactly to the mandrel solves this foundational problem.
Modern equipment runs exceptionally fast. A standard narrow web label press frequently exceeds speeds of 300 feet per minute. Rapid acceleration amplifies torque forces on the unwind spindle. If the core dimension is too large, the chucks cannot grip the inner wall securely. The spindle spins, but the heavy foil roll lags behind. This delayed reaction snaps the web. It forces the press operator to rethread the entire machine.
Many facilities rely heavily on step-up adapters. This practice introduces massive mechanical and labor inefficiencies. Operators waste precious setup minutes switching step-down adapters for non-standard cores. These constant changeovers kill productivity. Every time a worker pauses to swap an adapter, you lose potential output. Moving away from temporary fixes towards native core dimensions restores your baseline efficiency.
The 3-inch core dominates the modern printing landscape. It serves as the default standard for over 80% of label press applications. This size provides an optimal balance. It offers excellent core rigidity and maximizes material yield. Furthermore, it guarantees seamless integration across almost all standard press equipment. You rarely need specialized tooling to run a 3-inch roll.
Some niche scenarios still demand 1-inch cores. You might encounter them on legacy machines. Highly customized short-run modules sometimes utilize them as well. However, this smaller diameter presents severe limitations. It restricts the maximum roll outside diameter (OD). Small cores simply cannot support heavy material weights. They also struggle to maintain tension stability during fast production runs.
You will rarely find 6-inch cores natively on narrow web setups. Some facilities evaluate them specifically for high-yield runs. A larger diameter effectively prevents foil curling near the center of the roll. However, using these massive cores requires structural upgrades. Standard cantilevered spindles often lack the strength to handle them. You must upgrade your mechanical supports before running a 6-inch ID.
| Core Size (ID) | Primary Application | Max Roll OD Support | Rigidity Level |
|---|---|---|---|
| 1-Inch (25.4mm) | Legacy machines, short runs | Low (Under 10 inches) | Low |
| 3-Inch (76mm) | Standard narrow web presses | Medium to High | High |
| 6-Inch (152mm) | High-capacity, anti-curl runs | Very High | Maximum |
Air expanding shafts demand extreme precision. They require exact ID tolerances to engage properly. For example, a 3-inch air mandrel needs an exact 3.00" to 3.02" inner diameter. Generic sizing will fail. If the core is too tight, the operator cannot slide it on. If it is too loose, the air bladders will crush the cardboard. Evaluating unwinder compatibility ensures your pneumatic systems function exactly as designed.
You must calculate the physical limits of your equipment carefully. Every cantilevered spindle has a strict weight capacity. There is a direct relationship between core size, foil length, and physical weight. A heavy roll generates a strong bending moment on an unsupported spindle shaft. If the roll OD exceeds machine limits, the spindle deflects downward. This deflection immediately ruins web tension on the operator side.
Major press brands utilize proprietary unwind modules. Mark Andy, Nilpeter, and Gallus each engineer unique mechanical tolerances. Standardizing your inventory requires navigating these specific configurations. What works flawlessly on a Nilpeter might slip on an older Mark Andy. You should consult your machine manuals. Measure the exact shaft diameter before ordering new foil rolls.
Utilizing 1-to-3-inch or 3-to-6-inch adapters seems convenient. However, adapters introduce secondary failure points. Every connection layer increases the risk of core slippage. Pneumatic and mechanical adapters often fail to grip smooth inner walls tightly. During a rapid press stop, the heavy foil roll keeps spinning. The adapter loses its grip entirely. This slippage ruins the web and creates massive material waste.
Stacked adapters destroy roll concentricity. When you stack mechanical parts, tiny manufacturing tolerances multiply. The roll begins to bounce as it spins. This bouncing effect transfers directly into the web path. It severely impacts the cold foil nip pressure down the line. Inconsistent nip pressure creates patchy, unacceptable foil transfers.
You must know when to utilize adapters. Use the following framework to guide your production floor decisions:
Common Mistakes to Avoid:
You must communicate exact requirements to your vendors. Build a strict checklist for every material order. Require precise data points from your suppliers. Include the exact Core ID. Specify metric versus imperial conversions clearly. Define the core material explicitly. A high-crush-strength cardboard behaves differently than rigid plastic. Finally, stipulate the roll width and the maximum OD. A precise cold foil roll specification protects you from unexpected shop floor surprises.
Procurement teams often buy whatever is cheapest. Production teams pay the price in machine downtime. You must align these two departments. First, audit your current press capabilities. Measure every unwinder shaft manually. Next, update your internal purchasing documentation. Ensure your buyers understand the mechanical constraints. Lock down your approved specs. This prevents suppliers from substituting an incompatible foil roll core just to save a few pennies.
Never buy large volumes without testing first. Implement a strict verification protocol for any new core specification. Follow these steps to verify tension stability:
Matching core dimensions serves as your absolute mechanical baseline. It is never an afterthought. Forcing incompatible rolls onto your equipment causes severe operational headaches. You will waste expensive substrate and burn through labor hours. Stop relying on stacked adapters for daily production runs. Native core fitments guarantee stable web tension and flawless registration.
Take immediate action on your shop floor. Audit your existing unwinder specifications today. Measure your mandrels manually to determine true tolerances. Update your procurement guidelines immediately. Consult your tooling and foil suppliers to build a standardized sourcing checklist. Getting the physical dimensions right ensures maximum machine uptime and superior print quality.
A: A loose core causes immediate slippage. The unwinder shaft will spin inside the core during rapid acceleration. This drops web tension instantly, causing the foil to flake and the web to drift out of registration. It often leads to web breaks.
A: Yes. Plastic cores offer superior dimensional stability and rigidity. They do not crush under high chuck pressure. Furthermore, they generate zero dust, making them ideal for cleanroom environments and high-speed narrow web applications.
A: A larger core diameter reduces the total footage you can fit within a specific roll OD limit. However, a larger core handles heavy material weights better. It prevents the inner foil layers from curling or wrinkling near the center.
A: Absolutely. Wide web machines routinely utilize 6-inch or even 12-inch cores to support massive roll weights and prevent shaft deflection. Narrow web machines almost universally standardize on 3-inch cores to balance weight and speed.
A: Industry standards typically require an inner diameter tolerance of 3.00 to 3.02 inches (76.2mm to 76.7mm). Tolerances outside this window will either crush on an air mandrel or fail to grip securely.
